Antique Saw Jointer & Raker Gauge

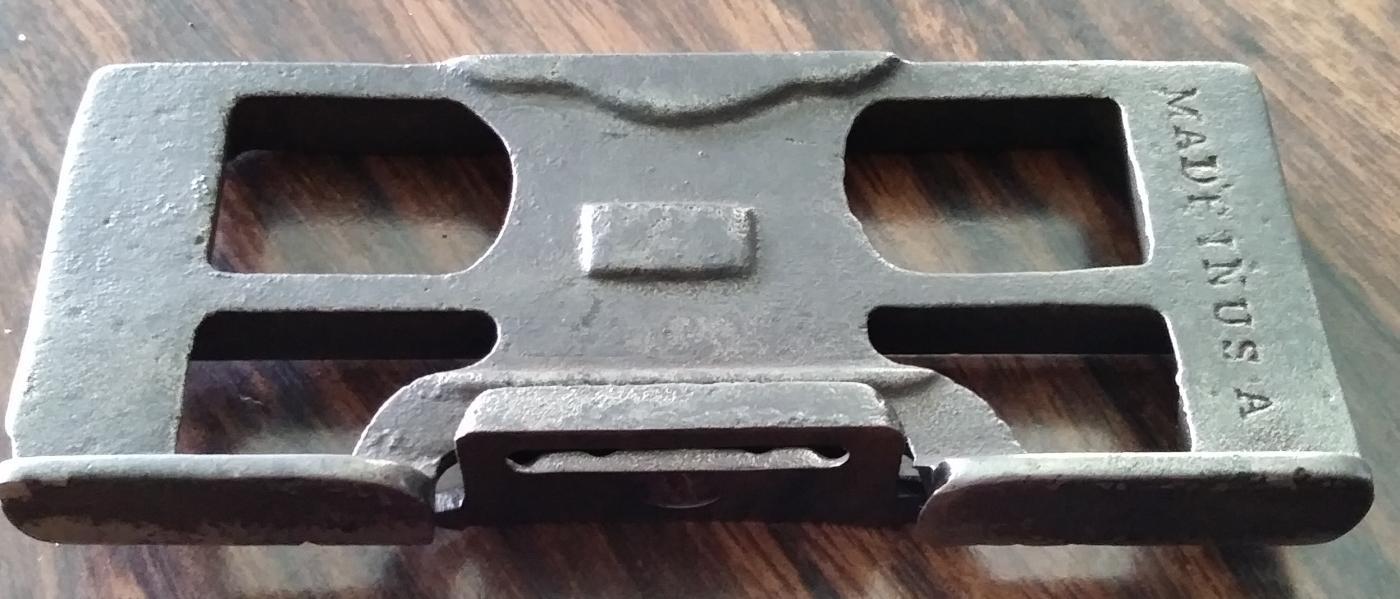

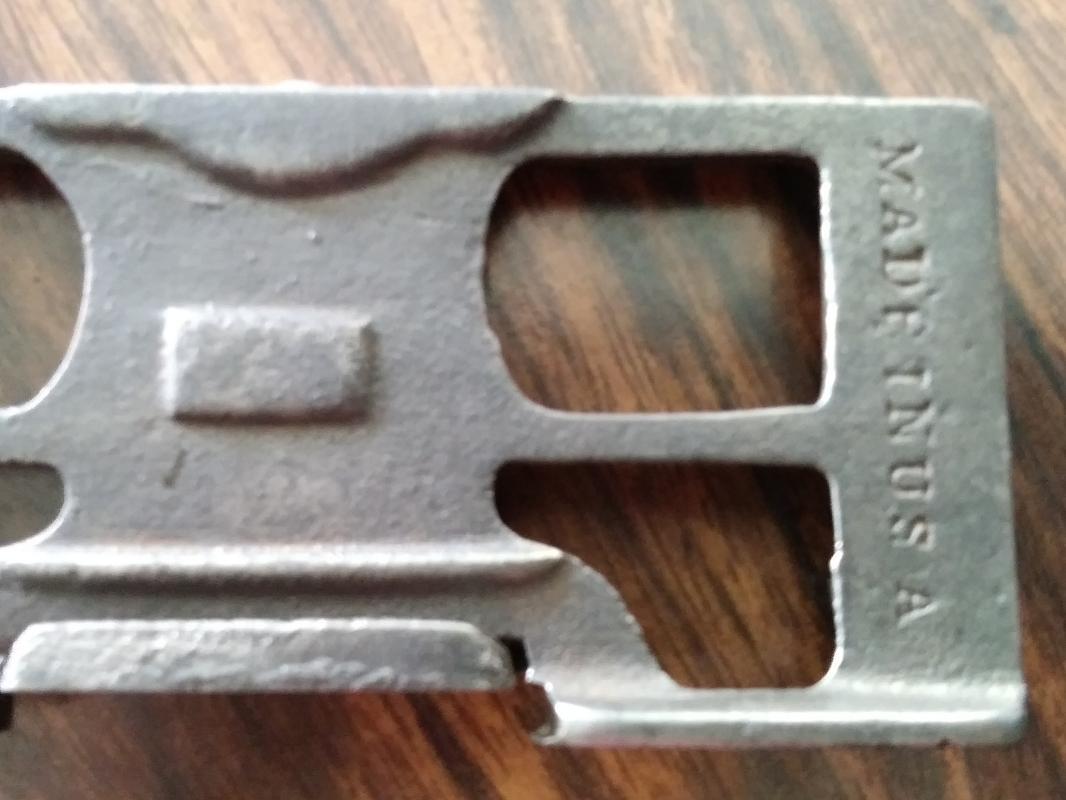

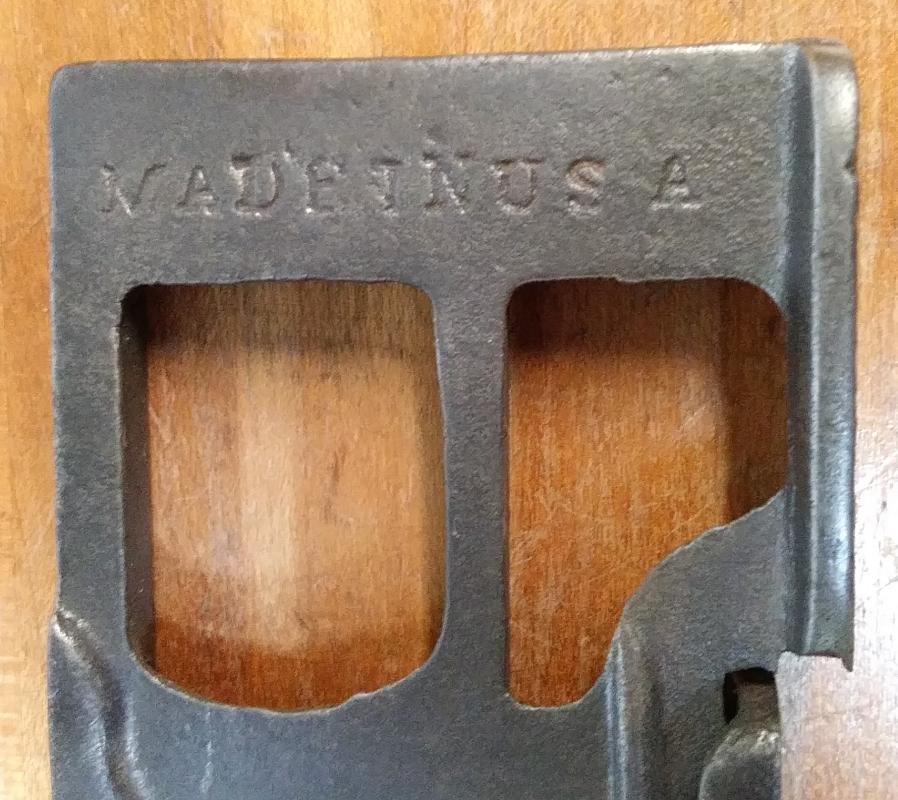

This is a quality made 5.25" long, hand-saw tooth jointer & Raker Gauge, designed for filing all the tops of the handsaw teeth to the same level or height before re-sharpening the teeth. Basically this model is cast iron, designed to have a file mounted on one side held in by the threaded screw you see, then with the file being wider than provide slot it fits into, place the file part on top of the teeth, with the side rails of the jointer gauge riding on the side of the saw blade. File the tops of the teeth until they are all at the same level, than begin the tooth sharpening process. A standard flat file can be used, most users cut off the un-needed part (the stem) of the file so it doesn't interfere with the process, the cut off can be done with a abrasive cut off wheel and a grinder. We have seen a few of these jointers over the years, they are basically the same as the Atkins jointers, but are not marked like the old Atkins' jointers were. This one is only marked "MADE IN USA". This one is complete, no rust, or damage, some minor pitting in the casting noted, the exterior finish is rather course, not a smooth as some we have seen, as per factory it appears, overall very good working order.
